PVC Wire Spiral Hose

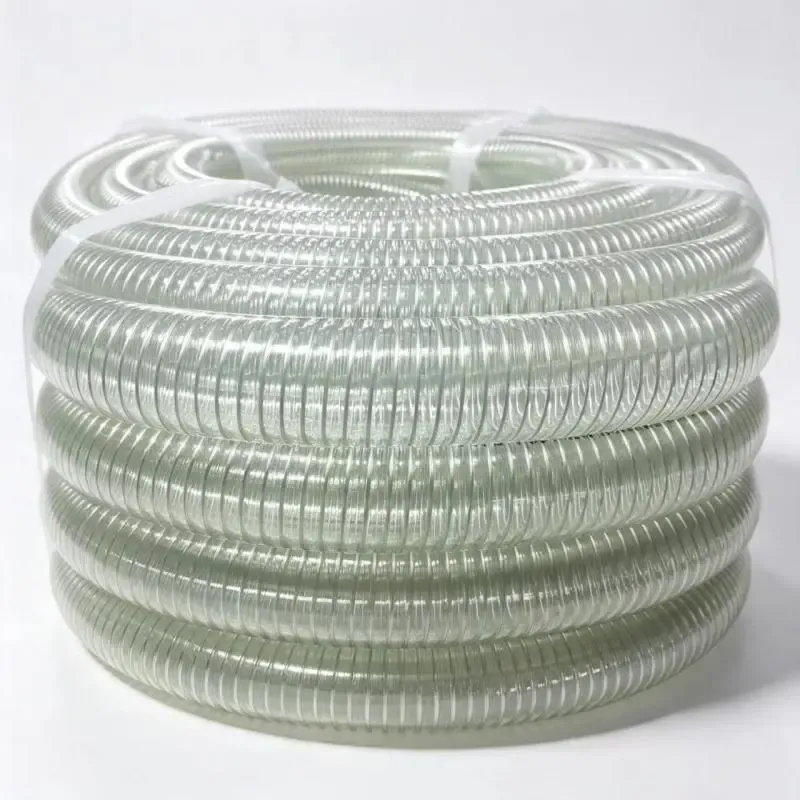

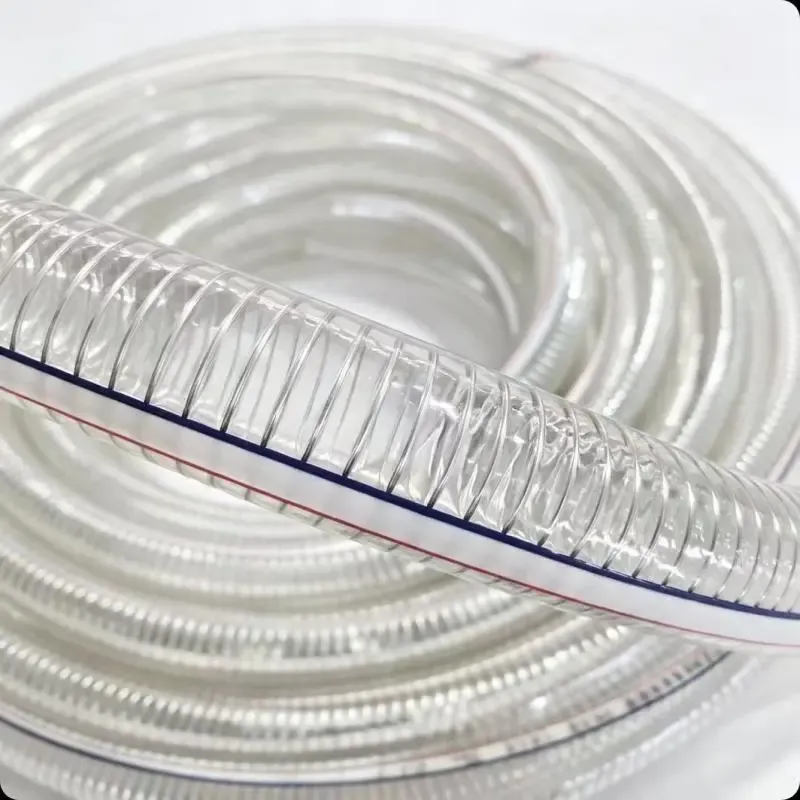

PVC Wire Spiral Hose from WANRUIGUDE New Materials. Material: Transparent flexible PVC + galvanized high-carbon spring-steel wire. Size range: ID 6-100 mm (approx. 1/4"-4").
Specifications
- Product Series
- TW-PVC-07
- Material
- Transparent flexible PVC + galvanized high-carbon spring-steel wire
- Construction
- Flexible PVC tube wall embedded with a galvanized steel-wire spiral reinforcement. Smooth inner and outer surfaces; continuously wound wire improves vacuum resistance and resistance to collapse…
- Color
- Transparent, transparent blue, and transparent green (custom colors available)
- Size Range
- ID 6-100 mm (approx. 1/4"-4")
- Working Pressure
- −0.1 to 0.8 MPa (vacuum to positive pressure, depending on size, at 23°C)
- Burst Pressure
- 0.6-2.4 MPa (approximately 3× the positive working-pressure rating, depending on size)
- Temperature Range
- −5°C to 60°C (up to 65°C with selected compounds)
- MOQ
- 1,000 m or 1 metric ton (recommended; confirm by size)
- Lead Time
- 10-20 days (standard sizes; subject to order confirmation)
- Customization
- Inside/outside diameter, wall thickness, color, length, logo printing, food-contact/oil-resistant/antistatic compounds, and matching couplings
PVC Wire Spiral Hose is a B2B hose option built from Transparent flexible PVC + galvanized high-carbon spring-steel wire. Typical source-listed applications include Industrial equipment suction and discharge; pumping systems; agricultural irrigation; machinery connections; transfer of oils and granular materials; construction and municipal drainage.

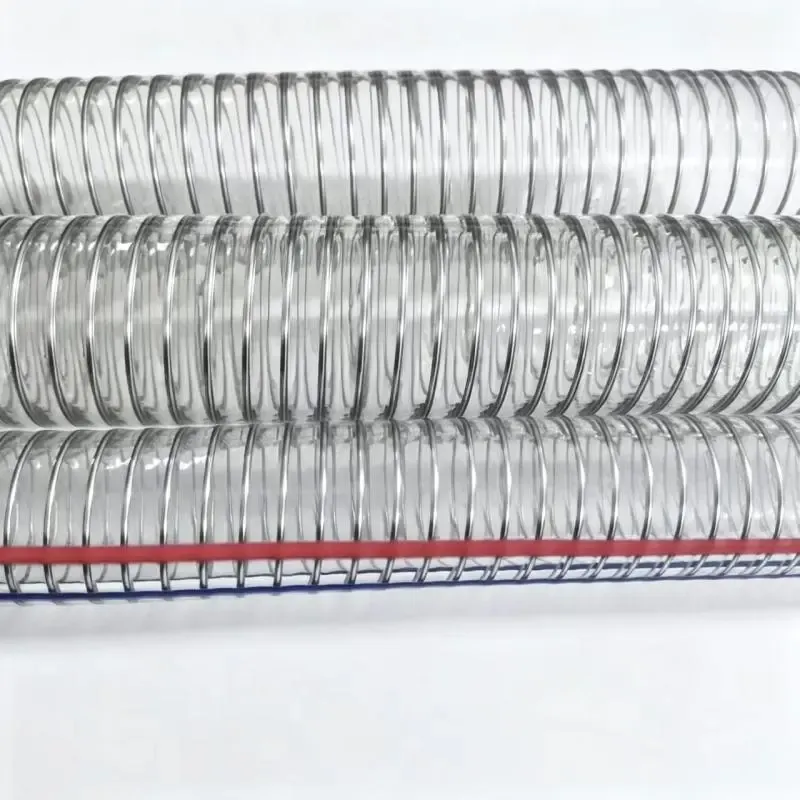

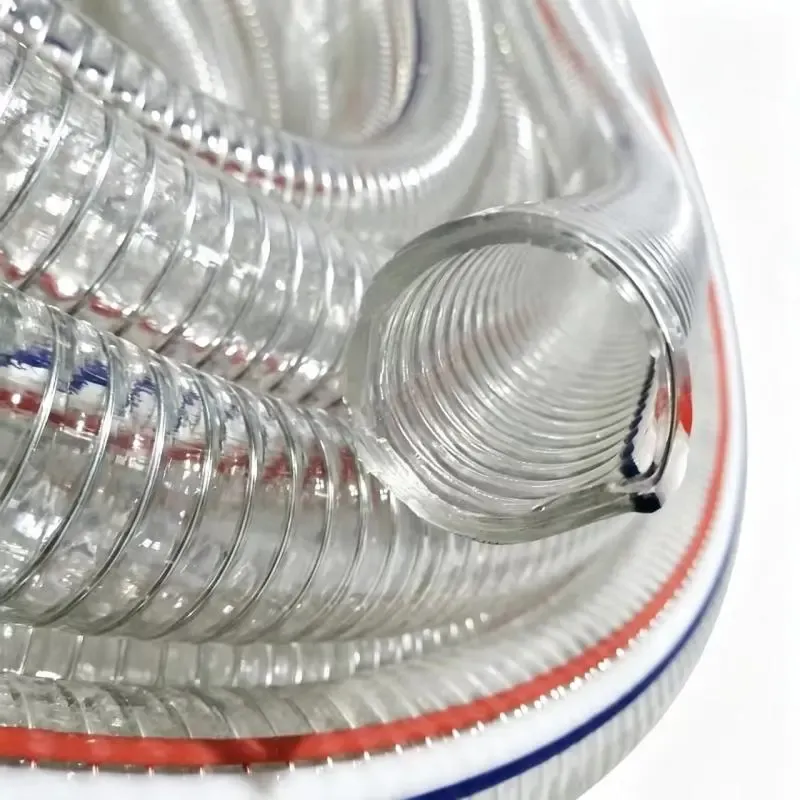

Construction: Flexible PVC tube wall embedded with a galvanized steel-wire spiral reinforcement. Smooth inner and outer surfaces; continuously wound wire improves vacuum resistance and resistance to collapse under external pressure. The supplied master sheet lists a working-pressure range of −0.1 to 0.8 MPa (vacuum to positive pressure, depending on size, at 23°C) and a burst-pressure range of 0.6-2.4 MPa (approximately 3× the positive working-pressure rating, depending on size).
Documented size range: ID 6-100 mm (approx. 1/4"-4"). Documented temperature range: −5°C to 60°C (up to 65°C with selected compounds).
Source-listed performance features include Transparent for visual inspection; vacuum and collapse resistant; flexible and easy to bend; smooth bore with low flow resistance; abrasion and weather resistant; compatible with many mild acids, alkalis, and common industrial fluids.
For selection and quotation, provide the conveyed medium, application, required inside diameter, length, operating pressure or vacuum, coupling type, quantity and destination. Commercial reference: documented MOQ 1,000 m or 1 metric ton (recommended; confirm by size); documented lead time 10-20 days (standard sizes; subject to order confirmation). Available customization: Inside/outside diameter, wall thickness, color, length, logo printing, food-contact/oil-resistant/antistatic compounds, and matching couplings.
